Guangxian CNC JNC1412 CNC Angle Steel Production Line Automated Angle Steel Line Angle Steel Punching and Shearing Production Line
Release time:
2025-06-25

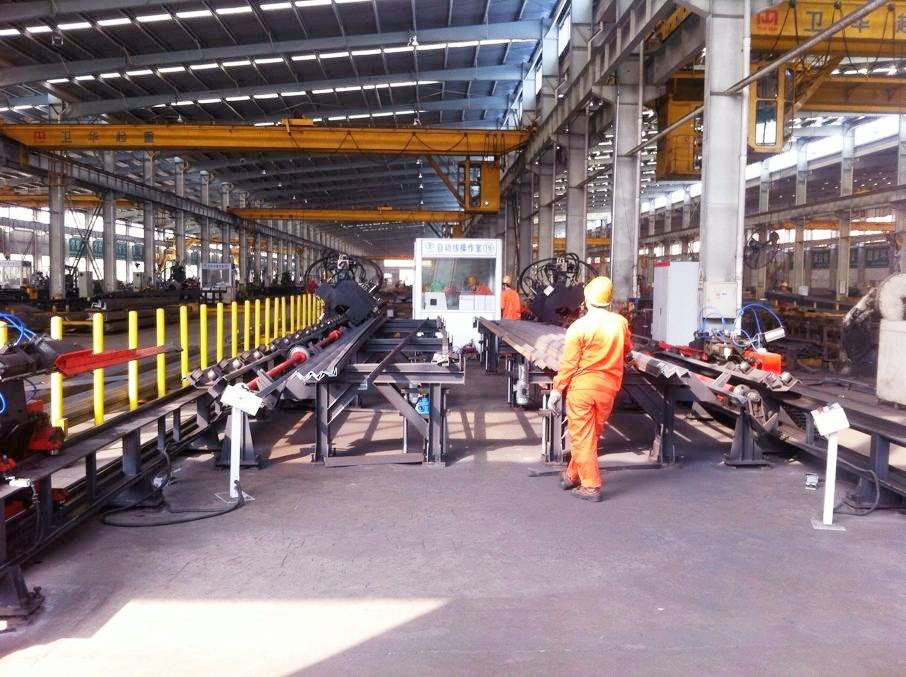

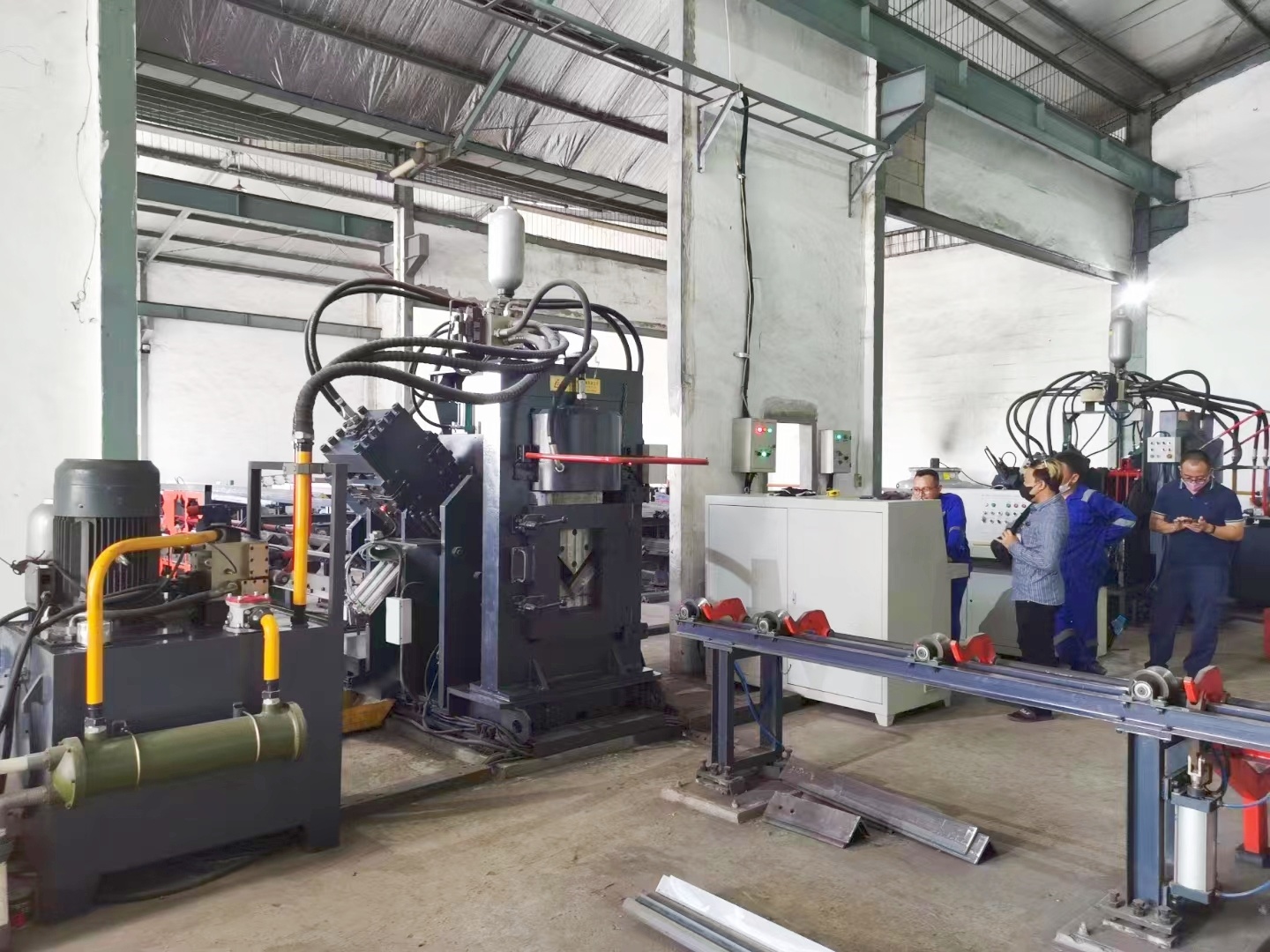

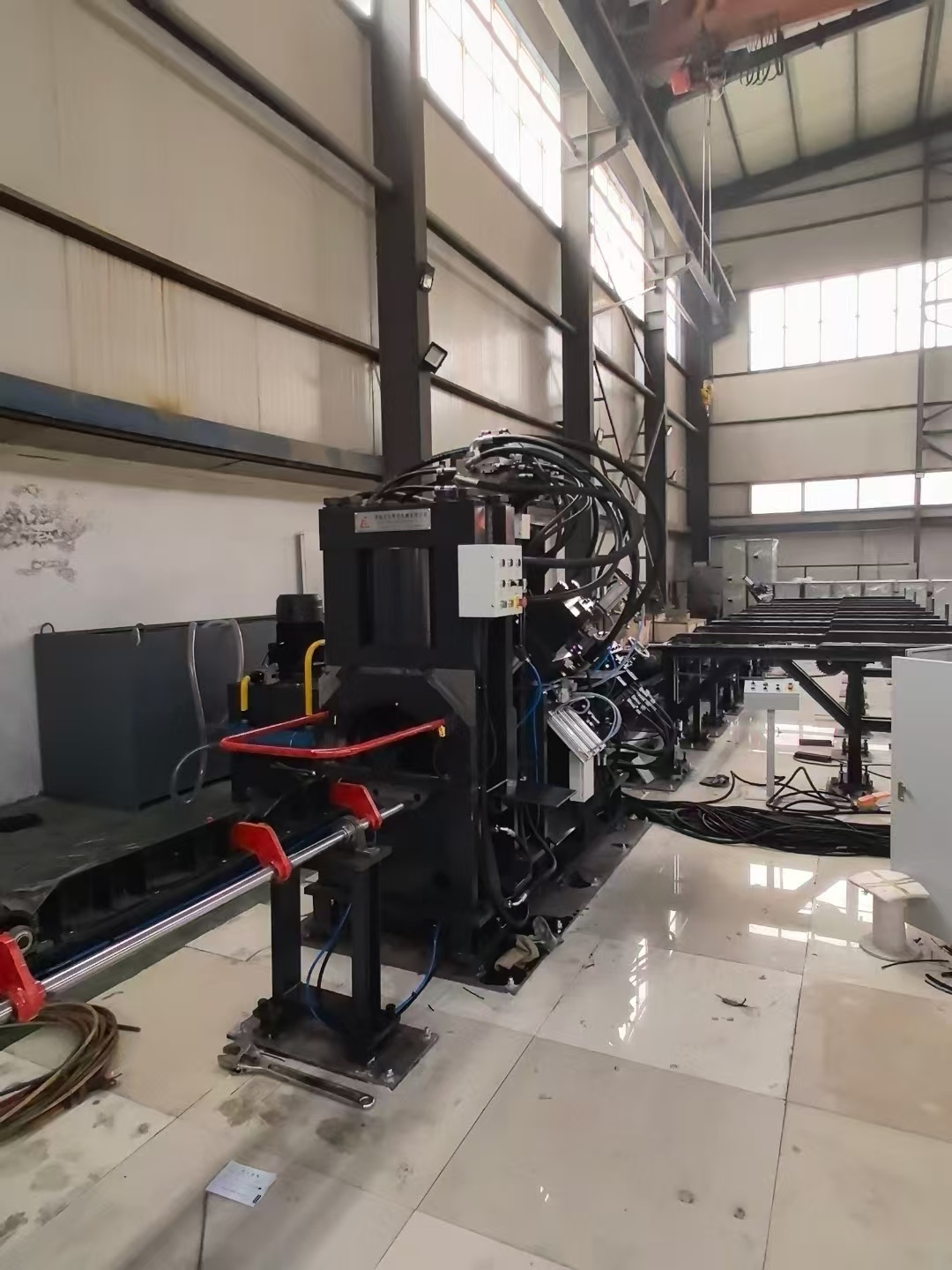

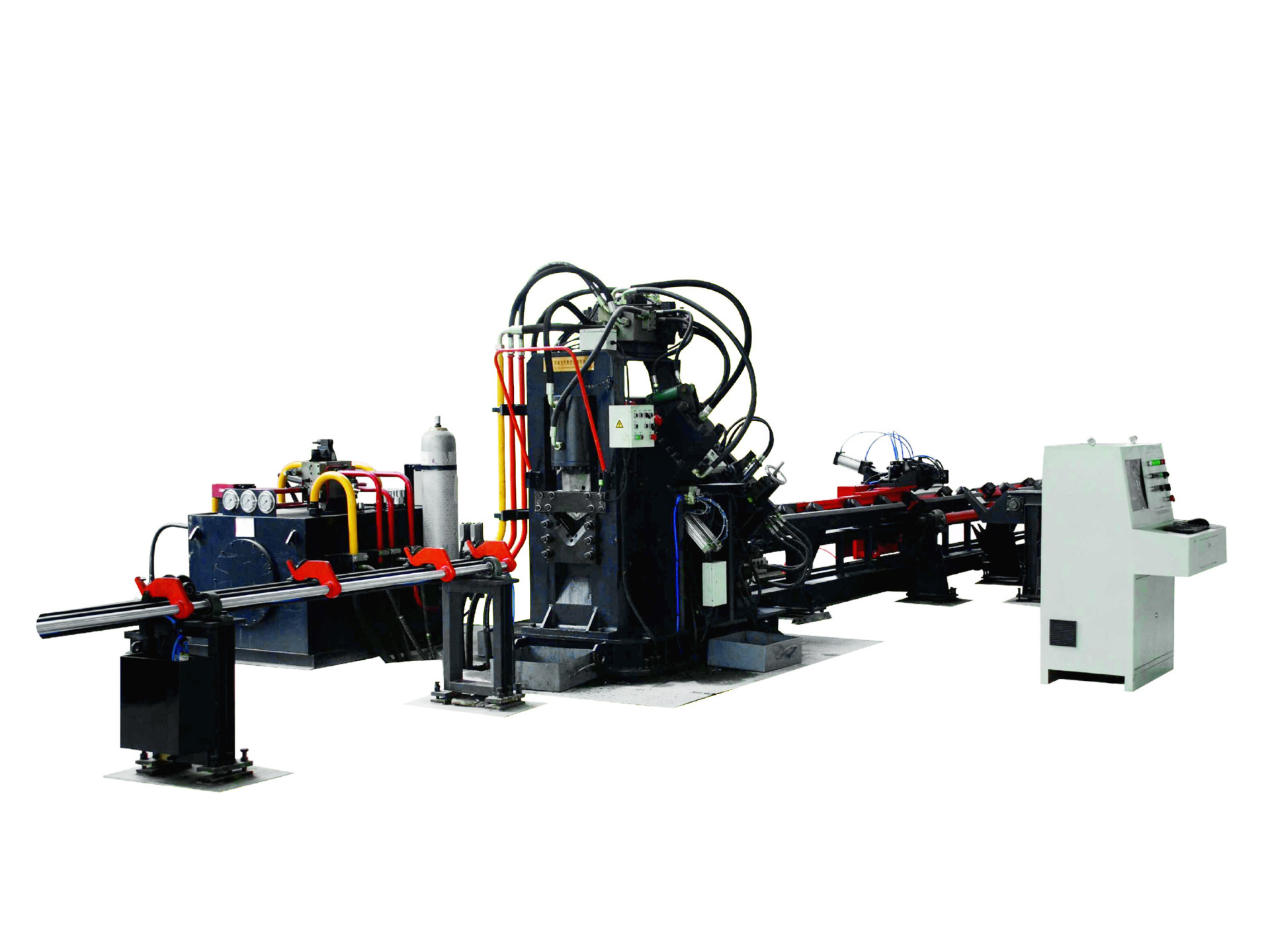

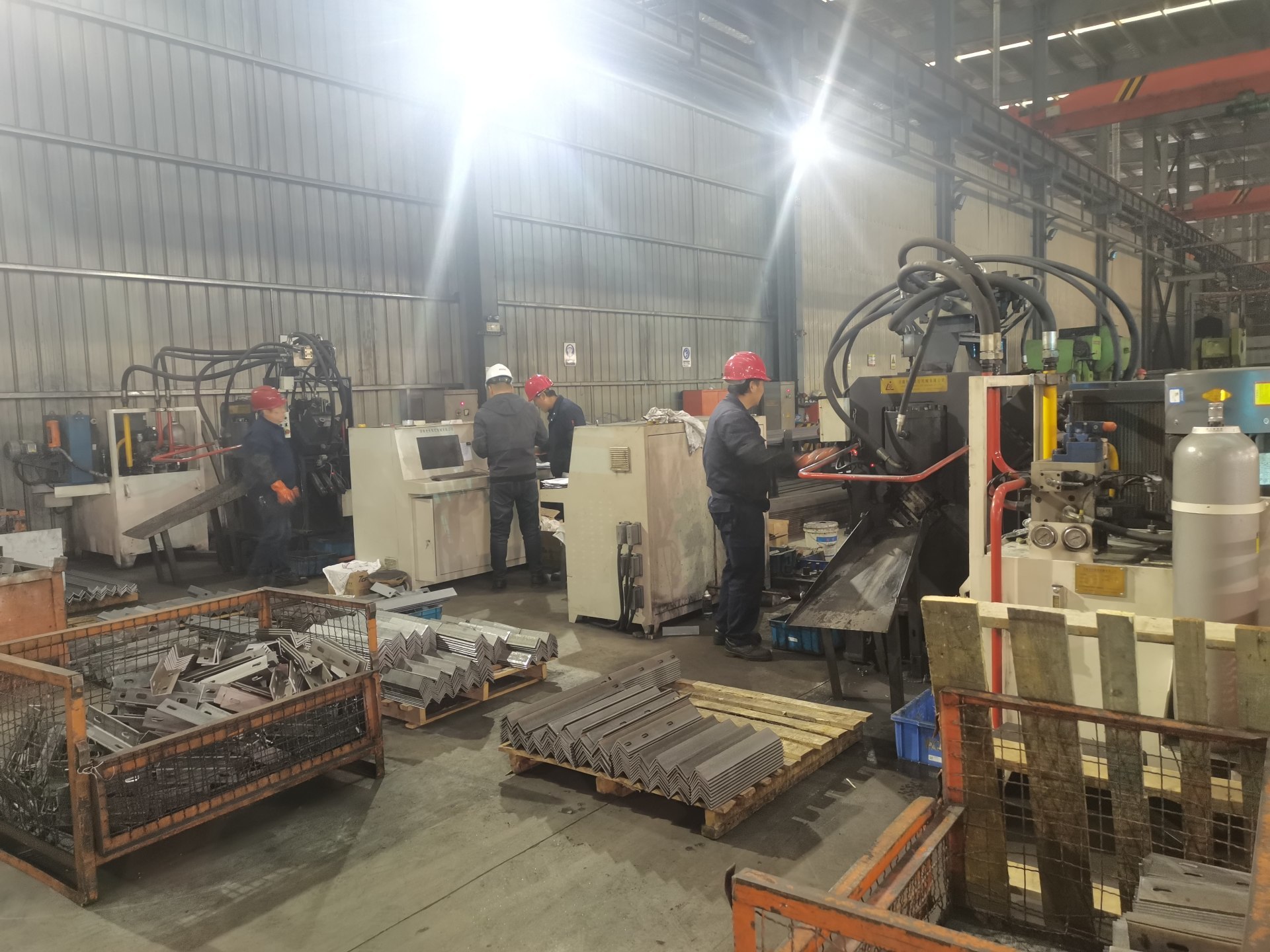

The Guangxian CNC JNC1412 CNC angle steel production line is a PLC-controlled automated angle steel punching and shearing production line that can automatically complete steel stamping, punching on both sides, fixed-length cutting, and corner cutting of rough angle steel blanks. It also has auxiliary functions such as automatic feeding and automatic unloading. The entire production line can be operated by a single person, integrating multiple processing procedures into a single production line to achieve automated processing of angle steel workpieces.
The Guangxian CNC JNC1412 CNC Angle Steel Production Line is a PLC-controlled automated angle steel punching and shearing production line. It can automatically complete the stamping, punching on both sides, length cutting, and corner cutting of blank angle steel, and has auxiliary functions such as automatic feeding and automatic unloading. The entire production line can be operated by a single person, integrating multiple processing procedures into one production line to achieve automated processing of angle steel workpieces. The JNC1412 CNC angle steel line can be used for the automated processing of blank angle steel ranging from 40*40*4 to 140*140*12, and can be used for angle steel towers, building steel structures, warehouse racks, elevator supports, etc., especially suitable for the processing of angle steel structural parts in the power transmission tower industry. It is an indispensable automated power transmission tower processing equipment for tower processing manufacturers.
The main processing performance of the Guangxian CNC JNC1412 angle steel production line is as follows:
| Machine Equipment Model Number |
JNC1412 |
| Machine Function |
Typing, Punching, Shearing |
| Processing Angle Steel Range (mm) mm |
∟40×40×3～∟140×140×12 |
| Maximum Blank Length (m) m |
12 |
| Finished Product Material Channel Length ( m |
10 |
| Maximum Punching Capacity (Diameter × Thickness mm) mm |
Φ26×12 (Material: Q345 510N/mm²) 2 ² |
| Number of Punching Heads per Side (pcs) |
2 |
| Typing Force (KN) KN |
630 |
| Number of Printing Head Groups (Groups) |
4 |
| Number of Heads per Group (pcs) |
12 |
| Head Size ( mm |
14×10×19 |
| Shearing Method |
Single-blade Shearing |
| Number of CNC Axes |
3 |
| Angle Steel Feeding Speed (m/min) m/min |
60 |
