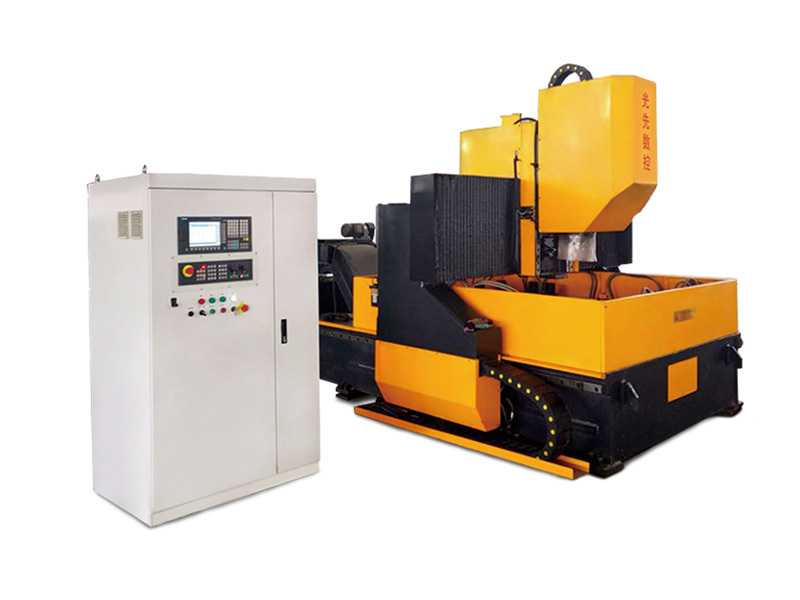

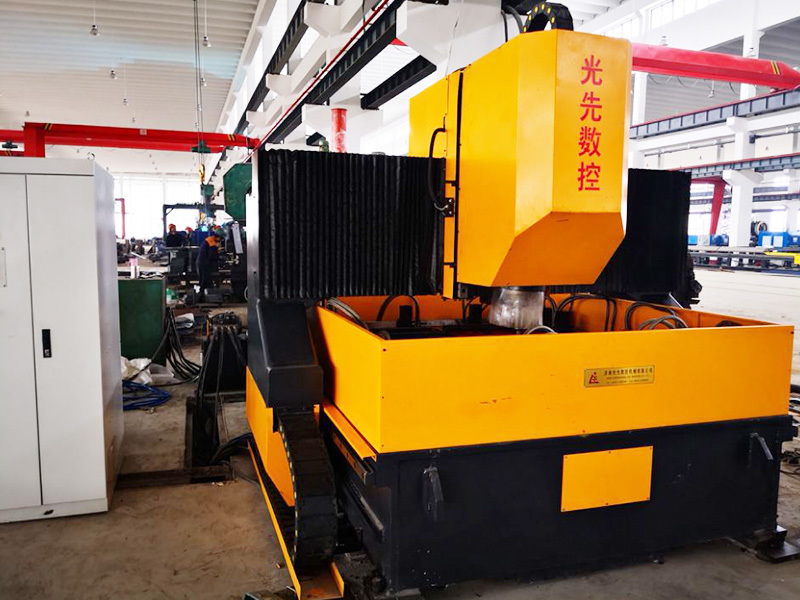

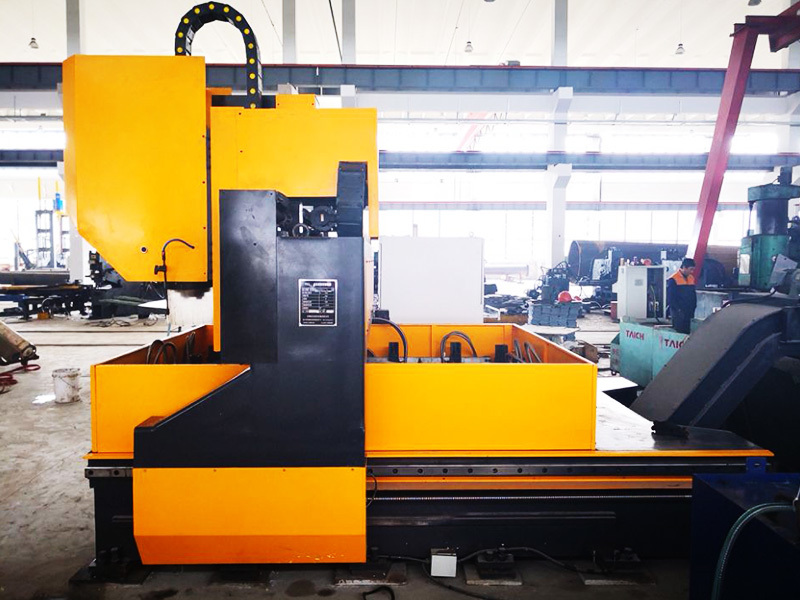

PZG2016 gantry mobile CNC plane drilling machine

Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
Detailed introduction
[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[产品参数, 参数]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]

The machine tool control system adopts the upper computer + PLC numerical control system control. The upper computer is equipped with automatic programming software and machine tool monitoring software, which can directly convert AUTOCAD graphics files to generate processing programs. Even manual programming is very simple and fast. Those who do not have computer operation experience can complete part programming in a short time.

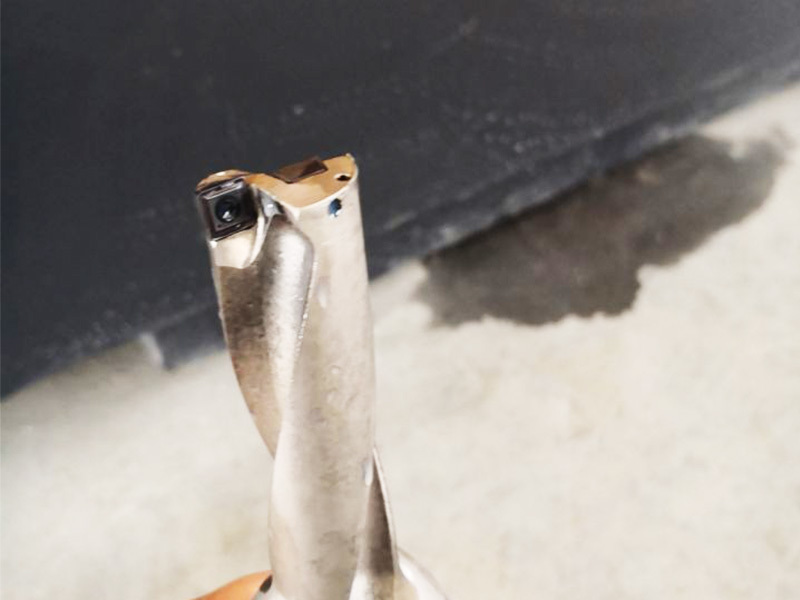

The high-speed drilling power head adopts a special frequency conversion motor for the main shaft. The special precision main shaft is driven by a toothed synchronous belt to realize variable frequency stepless speed change. The feed is driven by a servo motor and a ball screw. The working feed rate is set by CNC adjustment. The spindle of the high-speed drilling power head is a BT50 taper hole, with a butterfly spring automatic broach mechanism, and the spindle box is equipped with a loosening cylinder (gas-liquid pressurized) for easy tool change. The drilling power head is installed on the CNC sliding table and moves up and down with the sliding table. It can bear heavy cutting load and is suitable for high-speed machining of cemented carbide tools.



2. Equipment parameters

1. Machine tool type Gantry mobile high-speed CNC drilling machine

2. Maximum clamping workpiece size 2000×1600mm

3. Workpiece thickness 15~100mm

4. Drilling power head type Single spindle sliding table servo control power head

5. Number of drilling power head 1

6. Spindle taper BT50 taper

7. Drilling diameter Ф16~Ф50mm

8. Spindle motor power 22KW

9. Spindle speed 30—3000r/min

10. Power head vertical stroke (Z axis) 400mm

11. Z-axis servo motor power 3KW

12. Longmen longitudinal (X axis) movement stroke 2000mm

13. X axis servo motor power 1.5KW

14. Transverse (Y axis) movement stroke of power head 1600mm

15. Y-axis servo motor power 1.5KW

16. Number of CNC axes 3

17. Machine tool accuracy

   Positioning accuracy ≤±0.25mm

   Repeatability ≤±0.12mm

18. Total motor power 33KW

19. The total weight of the machine tool is about 9.5 t
