JGZ series CNC H-shaped hacksaw cutting and drilling production line

JGZ1000 CNC H-shaped hacksaw cutting and drilling production line

Number of views:

1000

JGZ1000 CNC H-shaped hacksaw cutting and drilling production line

Retail price

0.0

元

Market price

0.0

元

Number of views:

1000

Product serial number

Quantity

Stock:

Category

Back to list



资质文件服务保障

Detailed introduction

[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[产品参数, 参数]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]

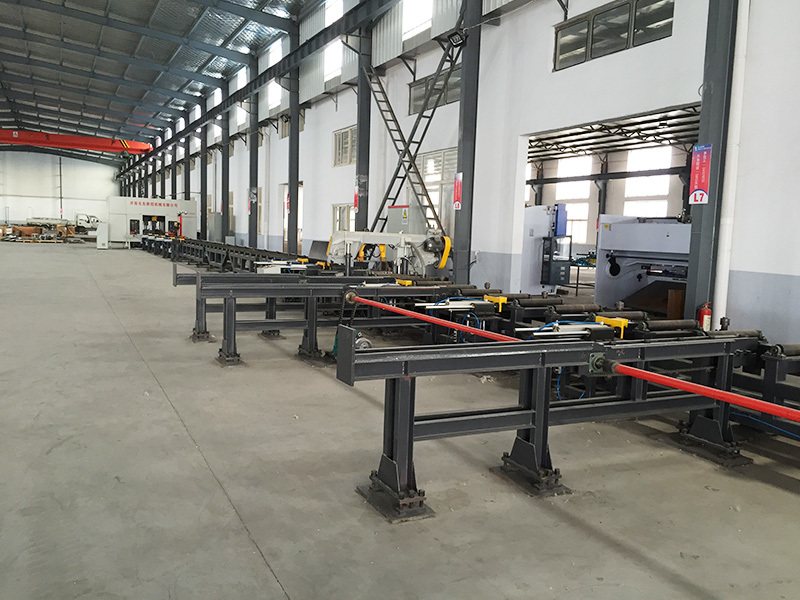

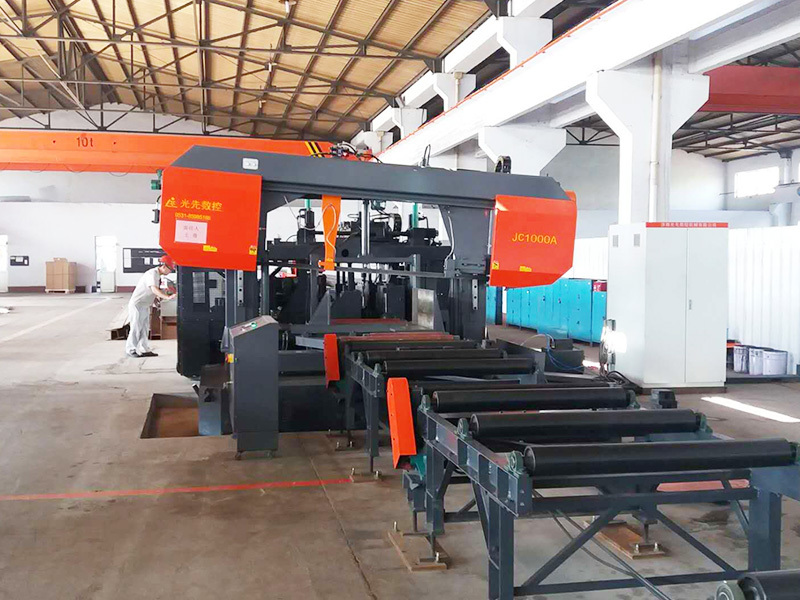

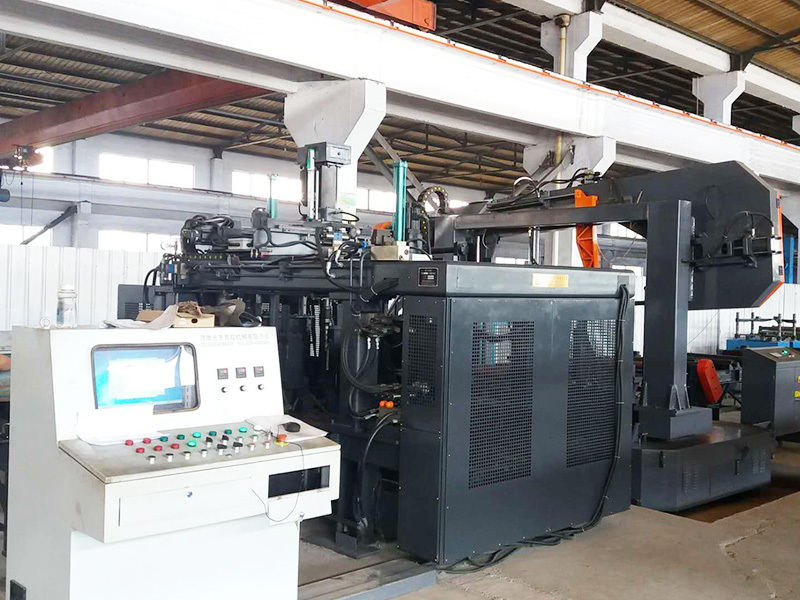

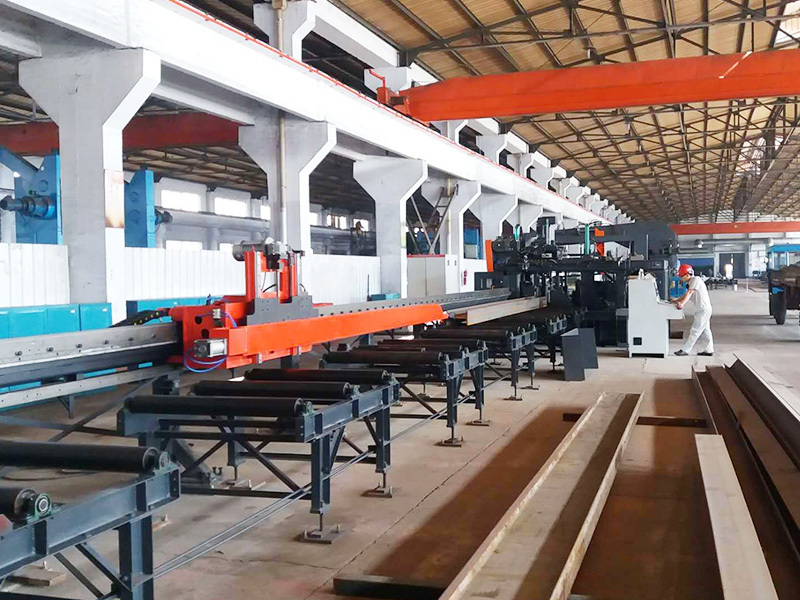

JGZ1000 H-shaped steel sawing and drilling production line is mainly used for sawing, drilling and cutting of H-shaped steel, channel steel and other steel. It has the characteristics of high processing efficiency, high precision, high automation, convenient operation and wide applicability. It is mainly used for the processing of three-dimensional garage steel structure, and it is also widely used in construction, bridges, tower masts and grids and other industries. The JGZ1000 CNC combined production line is composed of a sawing production line and a CNC three-dimensional drilling machine (including plasma cutting). The control system of the production line is composed of touch screen and PLC. In order to ensure the reliability and durability of the equipment, the servo motors and servo amplifiers used in this equipment are all world-renowned brand products.

The main technical parameters:

Parameter name		Unit	Parameter value	Remarks
Workpiece Parameters	Width range	mm	100～1000
	Height range	mm	100～1000
	Maximum feed length	mm	9000
	Minimum feed length	mm	5000
	Maximum speed of CNC feeding device	m/min	40
