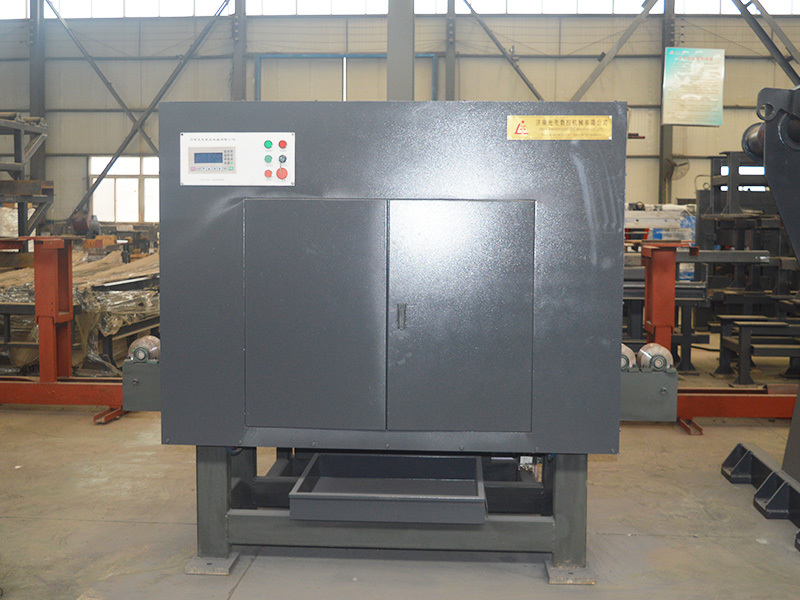

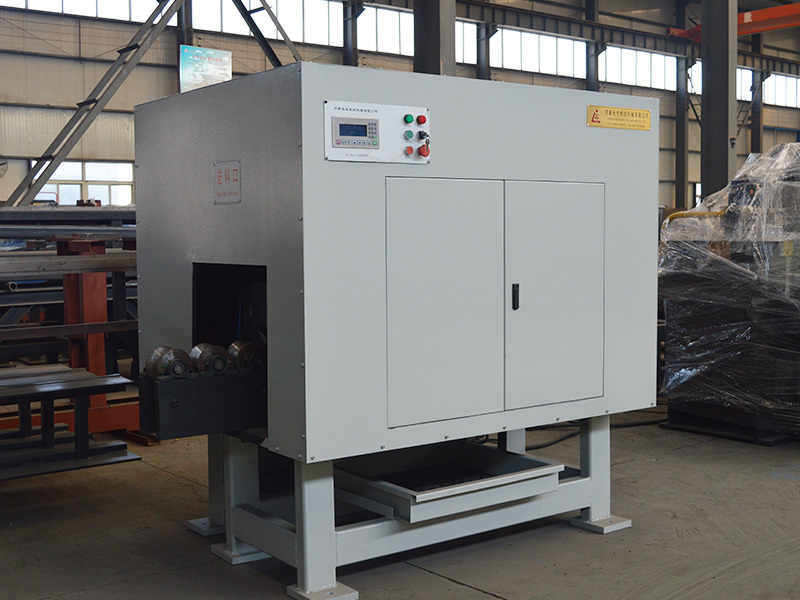

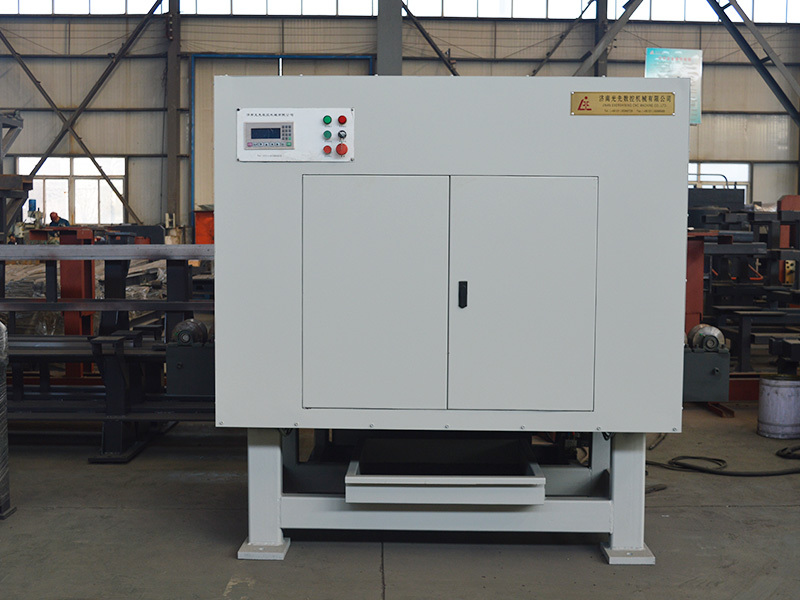

CB36 CNC Angle Steel Chamfering Machine

Using the principle of milling, the processing speed is fast, the efficiency is high, and the surface flatness of the workpiece is good.

The equipment is easy to operate, reducing the operating requirements for workers;

The machine has a high degree of automation and can realize continuous/single-section feeding, effectively improving work efficiency;

Compared with the traditional planing machine processing technology, this machine overcomes the problems of limited processing length and cumbersome clamping, the processing length is freely unrestricted, and the workpiece does not need a clamping device, making processing more convenient and faster, reducing the labor intensity of workers, and greatly improving production efficiency;

The equipment is easy to operate, flexible to adjust, and stable in operation.

Machine model Machine model	CB36
Processing angle steel size range (mm) Processing angle steel size range (mm)	L63×63×4~L360×360×40
Power requirements Power requirements	Three-phase four-wire 380V, 50Hz 3-phase 4-wire 380V, 50 Hz
Total power of equipment(kw) Total power of equipment(kw)	12
Air source requirements Air source requirements	0.6~0.8MPa
Single spindle power(kw) Single spindle power(kw)	5.5
Cutting speed（min-1） Cutting speed（min-1）	360
Cutter head diameter(mm) Cutter head diameter(mm)	120
Feed rate(mm) Feed rate(mm)	0~450
Number of spindles Number of spindles	2
Number of feeding motors Number of feeding motors	2
Number of pressing cylinders Number of pressing cylinders	4
Nominal pressure(kN) Nominal pressure	1600
