BNC110Q CNC connecting plate punching and typing machine

Category:

BNCQ series CNC connecting plate punching typewriter

Inquiry

Keywords:

BNCQ series CNC connecting plate punching typewriter

Details

BNC110Q Series CNC Connecting Plate Punching and Typing Machine (Reinforced)

This product has obtained a number of national patents, with patent numbers 2015 2 1014818.5, 2015 2 0948896.6, 2013 2 0434794.3, etc.

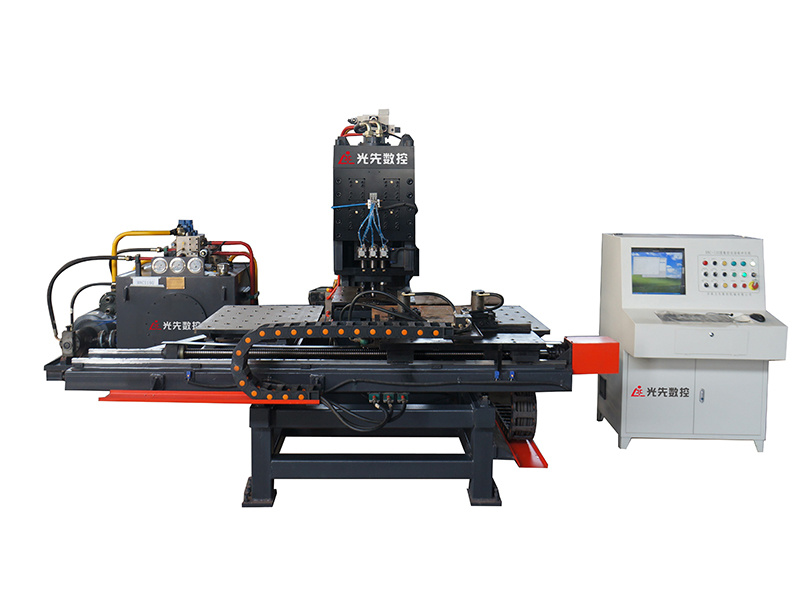

This machine is a fully automated CNC device for punching and typing metal plates.

Technical Features

Basic technical features are the same as ordinary plate machines. The unique technical features of this equipment are as follows:

1. Using a cylinder-actuated piston fixed method, the upright plate, die frame, and punch rod of the main unit are reinforced, enhancing mechanical rigidity, improving the stress state, and significantly improving the stability and reliability of the equipment during long-term high-load operation.

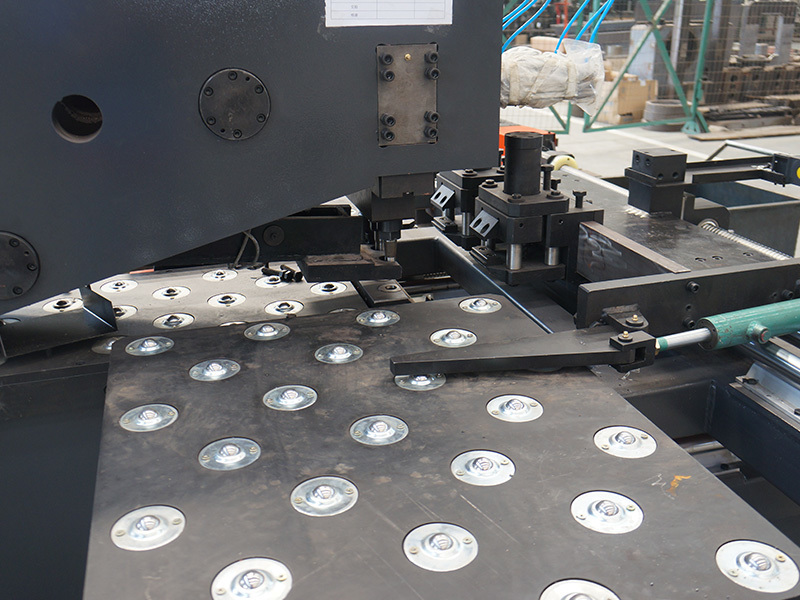

2. The workpiece is supported by a floating ball worktable.

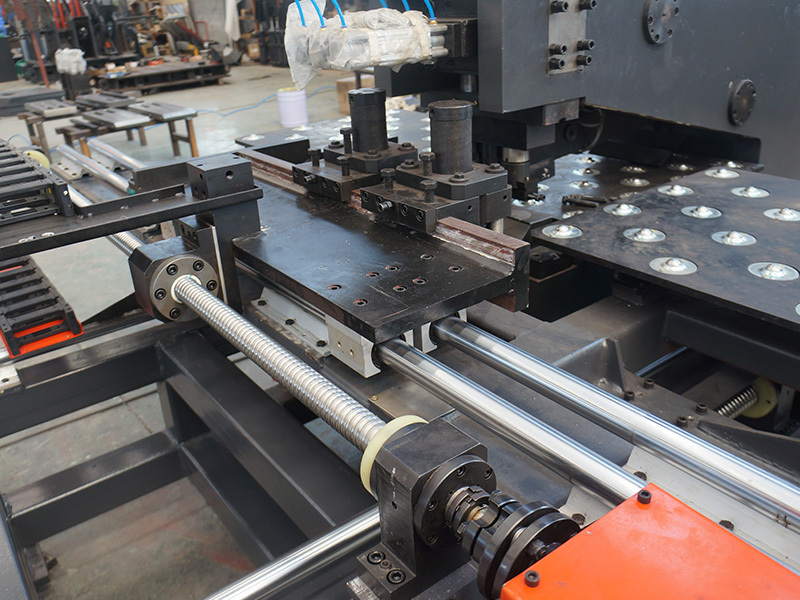

3. The guide rail of the worktable is changed to a rectangular linear guide rail, which is strong in rigidity and high in precision.

4. Cooling method: Air cooling or water cooling is available for users to choose.

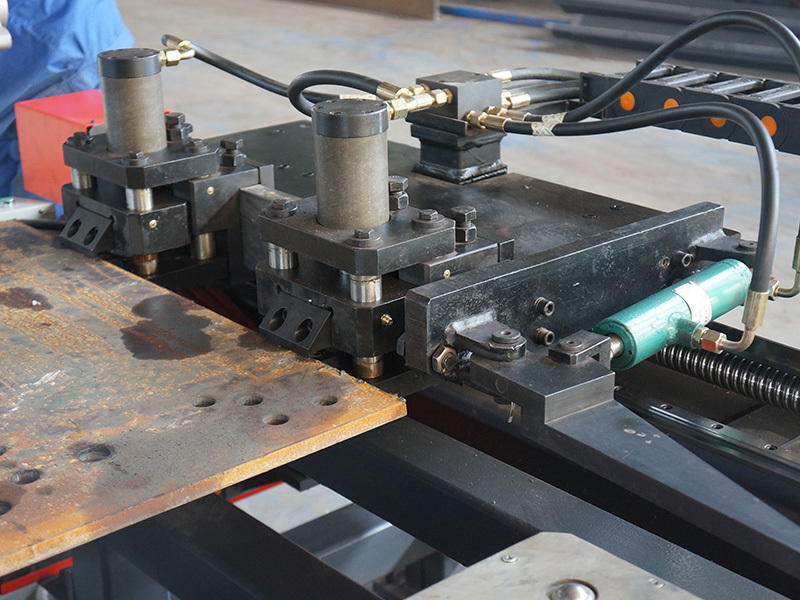

Punching uses cylinder movement, with the piston rod fixed and four-sided guidance, resulting in strong anti-side load capacity.

Using CNC technology and servo motor feeding, it features high efficiency and stable workpiece precision.

Main functional components are assembled modularly for easy maintenance.

Automatic lubrication is used to improve maintenance efficiency.

Punching, typing, and drilling can be performed on the same plate.

The drilling unit has fast feed for empty stroke, slow feed for work, and fast return functions, improving work efficiency.

Simple programming: Hole diameter, position, and number of workpieces can be entered, or programs generated by lofting software can be used, or direct conversion from CAD/CAM can be employed.

It has a self-diagnostic function for faults.

Machine Model
Machine model

BNC110Q

Maximum Workpiece Size (mm)
Max. workpiece size (mm)

1500×1000

Maximum Punching Capacity (mm)
Max. workpiece size (mm)

φ26×25(Material Q345 510N/mm²)
φ26×25(Material Q345 510N/mm²)

Workpiece Punching Plate Thickness (mm)
Thickness of punching plate (mm)

5~25

Maximum Drilling Hole Diameter (mm)
Max. drilling hole diameter (mm)

Maximum Drilling Plate Thickness (mm)
Max. drilling plate thickness (mm)

Punching Force (KN)
Punching force (KN)
